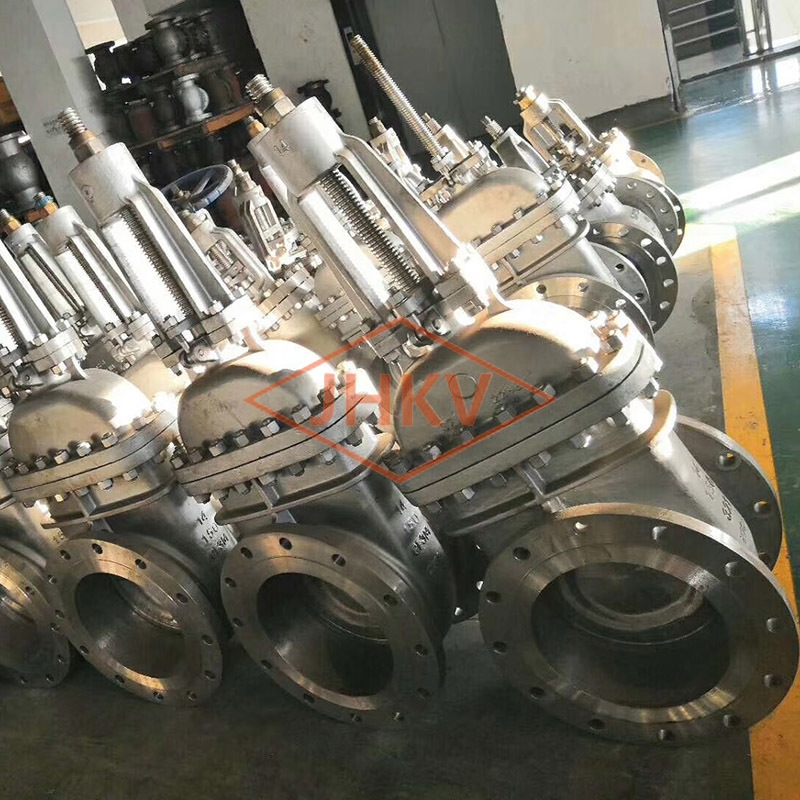

Technical Specification

Design Standard: API, ASME, EN, ISO, JIS, DIN, BS, GB

Connection type: Flange, SW, NPT, BW

Pressure range: 150LB~1500LB, 1.0MPa~25.0MPa, JIS10K~100K

Size range: NPS3/8”-42”, DN10~DN800

Drive: Hand wheel,  Gear, Electric, Pneumatic actuator



Design Feature:

Solid wedge / Flexible graphite

Full bore / Reduce bore

Bolted bonnet

Renewable seat / integral seat





Main Part Material :

Alloy 20, B462 N08020, A351 CN7M
