Basic Info
Model NO.: GAZZYP / GAZZCP/ GAZZVP
Actuator: Self-Actuated
Material: C.S/S.S 304
Usage: Flow Control
Trademark: GOOLE, OEM
Origin: Wenzhou, Zhejiang, China
Category: Control Valve
Connecting Type: Flange
Medium: Coal Gas,Air,Sealed Oil.,etc
Application: Industry
Specification: CE, SGS, GMP
HS Code: 8481804090
Product Description

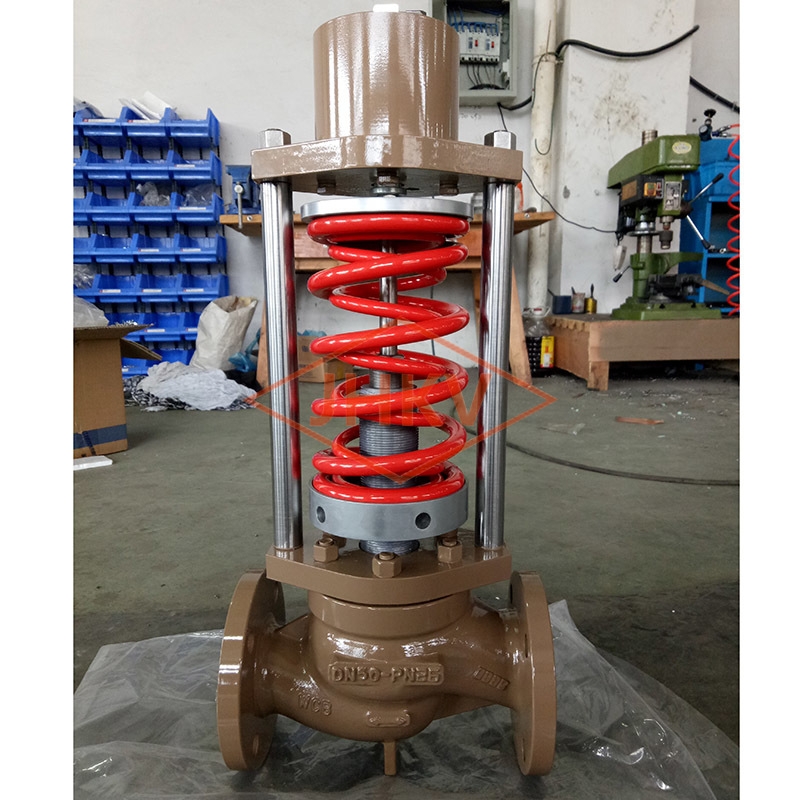

1. Self Operated Pressure regulating Valve Introduction

GAZZC, GAZZV series self operated  difference (little) Pressure Control Regulating valve Can be used in nominal pressure PN0.1 , PN10. The difference (little ) presses the regulation of segmenting. From 50mm.WC to 0.1MPa. self operated type difference (little ) Regulating valve of the pressure The use is very extensive, can be used in industry's combustion furnace system, control two kinds of supplies , such as coal gas , air discharge matching , burn in order to reach the ideal. Used in the sealed oil system of the hydrogen-cooled generating set , it is bad to control the pressure among the sealed oil and hydrogen, so as to ensure and seal reliably. Act as Difference presses the valve End not low-voltage the coherent Press the valve a little (Difference presses the valve to shoulder and press, the end is pressed, strength is zero).


2. Self Operated Pressure Control Regulating valve Characteristic

2.1 Do not need to stop producing and can go on adjustment of the establishing value;
2.2 There is no packing , exist not gritting at being have , not last activity valve stem,on seal more reliable
2.3 The sensitive element of executive body is extremely sensitive , the pinpoint pressure will be detected out while changing
2.4 The valve body is Stone's form , therefore K, B type body of a kind of valve very in common use

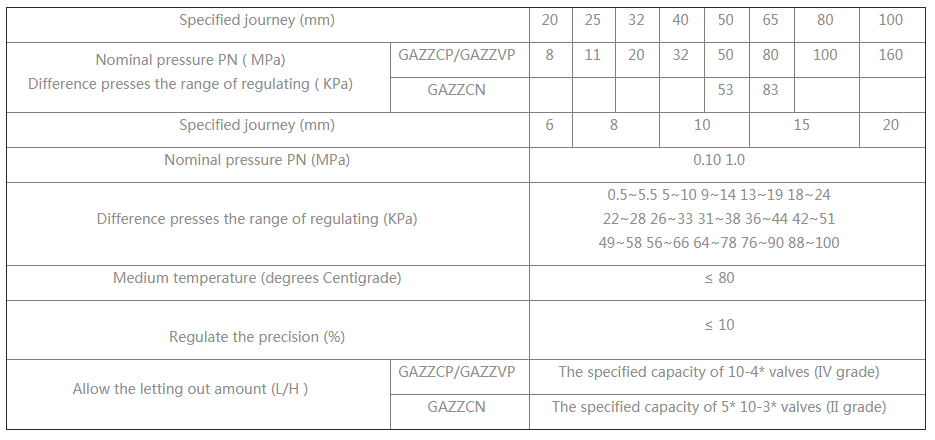

3. Regulating valve of the pressure Main technical parameter and performance index ( Form one)




4. Dimension of the Self Operated Control Valve : mm

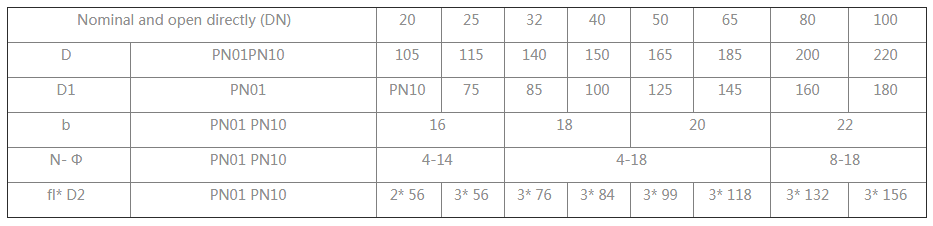

Third , flange inch to the limit (form three)
